Hopper Cluster Open OnDemand Server User Guide

Contents

  1. Open OnDemand on Hopper

  2. Accessing the OOD Server

  3. Files

  4. Jobs

  5. Clusters

  6. Interactive Apps

  7. Mathematica and MATLAB Etcetera

  8. Copying into the Session

  9. Copying from the Session

  10. Logging out

Open OnDemand on Hopper

The Open OnDemand (OOD) Server on Hopper is a web portal that allows users to access the cluster resources with a graphical user interface (GUI). Users will be able to view, edit, upload, and download files, create, edit, "submit" and check jobs, run GUI applications (currently MATLAB, Mathematica, and Jupyter Lab with more to come), and has command line shell access, all through a web-browser. These interactive sessions can be used for up to 12 hours.

Accessing the OOD Server

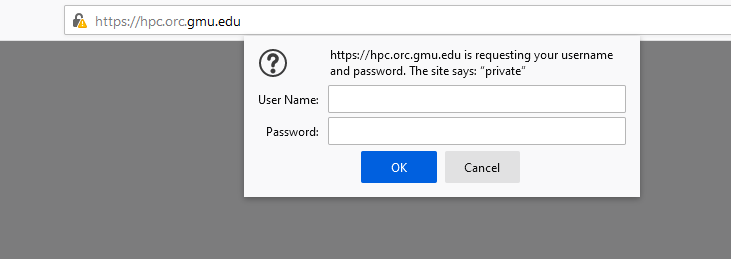

OOD Authentication.

To access the OOD web server, point your browser to https://ondemand.orc.gmu.edu. You currently need to be on the GMU VPN for the connection to work, we expect to make the system publicly available pending approval by the ITS security office. You will have to authenticate; the credentials are your GMU NetID and Password.

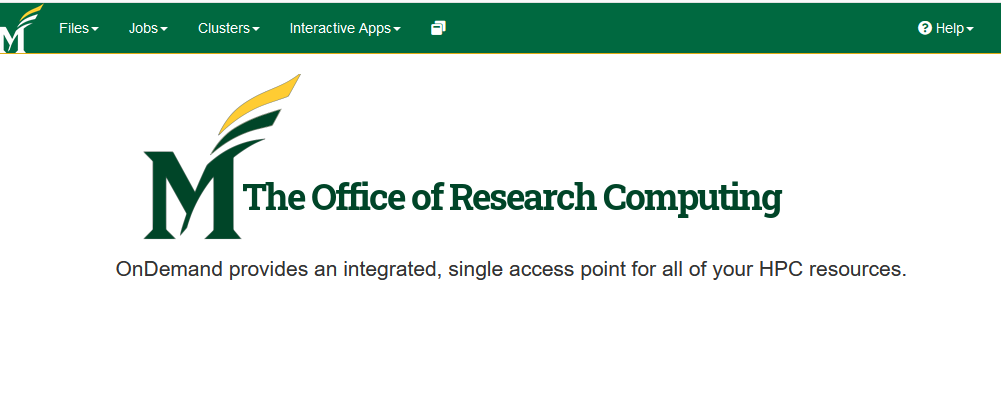

OOD Dashboard.

This Authentication method is not permanent, and it will soon be replaced by Shibboleth SSO. Once authenticated you will be directed to the dashboard. The Dashboard has a menu bar across the top with the following options: "Files", "Jobs", "Clusters", "Interactive Apps", "My Interactive Sessions", "Help", and "Logout". Each option will be discussed in its own section.


Files

The "Files" option allow the user to navigate their file system, download or upload files, copy files, rename files or directories, delete files, create new directories or files, or even open a terminal session. Starting from the left, the Files tab has a "Home Directory" choice. Selecting this will open a new tab that will show you your /home directory contents on Hopper. You can view, edit, upload, and download files directly to/from your workstation.


OOD Files.


You can change directories via the "Go To..." menu. Selecting the "Open in Terminal" choice will open a new tab with the terminal prompt for the directory you are currently in. In the terminal tab, you can navigate and work as you normally would on the CLI.

Jobs

The **Jobs**; has two options: **Active Jobs**, and **Job Composer**. The **Active Jobs** page permists the user ot see information on any jobs they have submitted which are either running, or pending. The **Job Composer** page provides an interface to create and submit new jobs. You can create a SLURM submission script from a template or from existing file accessible in your directory. Scripts can be editied using the provided **Editor** option, or by using **Open Terminal** to open a terminal and directky create or modify the script as you would on the head node.

Jobs.

Once your script is set, you can "submit" the job by using the green button with the arrow on it. Jobs can also be stopped in an analogous manner using the button with the yellow square or removed by using the red button with the trashcan icon. The status of the job will change depending. You can also use the Templates option to use already available job submission scripts for new jobs.

Clusters

The Clusters tab will open a new tab connecting you to Hopper from the command line. This is just what you would see if you were to connect using ssh from your local computer. You can work here as you normally would in your shell.

OOD Terminal.

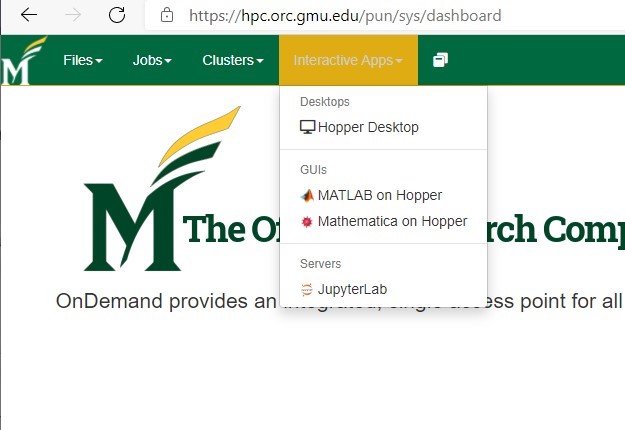

Interactive Apps

This tab gives you access to a desktop environment on the cluster or allows you to launch Jupyter Lab, or one of the GUI applications that have been configured. ![](../img/OOD/ood_interactive_apps.jpg) Before any application is launched, the user must complete a form were the number of hours, number of cores, and the amount of memory may be selected. The form has information about the default options, so if the user is happy with the defaults the user can simply click "Launch."

Application Forms.

The sessions run directly on compute node or nodes in the cluster with the requested resources assigned. Once you launch a session, it may be used as a private workstation, and it persists for the duration set or until you "delete" it.

Mathematica and MATLAB Etcetera

Hopper Desktop, Mathematica and Matlab sessions are all GUI based applications that use a proxied VNC (noVNC) connection to attach to the resource in the Hopper cluster. In normal activity the function just like a normal remote display inside a browser window. The main issue with this form of connection is when a user wants to cut and paste between application on the local host system and applications running in the noVNC window. There is a facility available to allow this but it not obvious.

Copying into the Session

Assuming the user has an application in a session that has text to be copied, in this example some text in a terminal. First select the text using your mouse as normal in a Linux GUI application and find the small tab on the left-hand side of the browser, this hides/displays the noVNC controls. Click on this tab. Click on the clipboard icon to reveal the noVNC clipboard. Select the text in the revealed clipboard, right-click and select "Copy." Navigate to the local application into which you want to past the text, right-click and select "Paste."


Copying from the Session

First select and copy the text from the local application.

In the noVNC window, open the clipboard. If necessary, click on "Clear" to remove any old data from the clipboards. Now right-click on the clipboard pane and select "Paste," the text will then be pasted into the clipboard. Navigate to the application in the noVNC windows into which you want to paste the text. Right-click in the application window and select "Paste." You may receive a popup window warning about the possibility of problems when pasting text into terminals, if you understand what you are doing you can ignore this warning and click on "Paste."

The text is now pasted into your application in the noVNC session.

Logging out

To completely log out of the OOD session, you need to close the browser after logging out of your session. Alternatively, access the server while using 'private browsing mode' so that the session information is removed by simply closing the browser.
